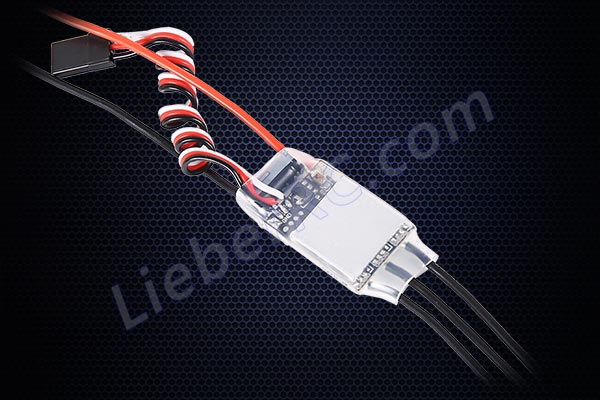

LB-OPTO-12A for Multi-rotor SystemLB-OPTO-12A


  • Special core program for multi-rotor controllers greatly improves throttle response.
  • Specially optimized software for excellent compatibility with disc-type motors.
  • Specially designed for multi-rotor aircraft without BEC output.
  • Compatible with various flight-control systems and supports a signal frequency of up to 621Hz
  • MOSFET with extra-low resistance brings high performance and great current endurance.



  1. Output: Continuous 12A, Burst 15A up to 10 seconds.
  2. Input Voltage: 2-4S Lipo, 6-12 cells NiMH
  3. Refresh rate of the throttle signal: 50Hz – 621Hz
  4. Size: 25*18*6(L*W*H)
  5. Weight: 8g
