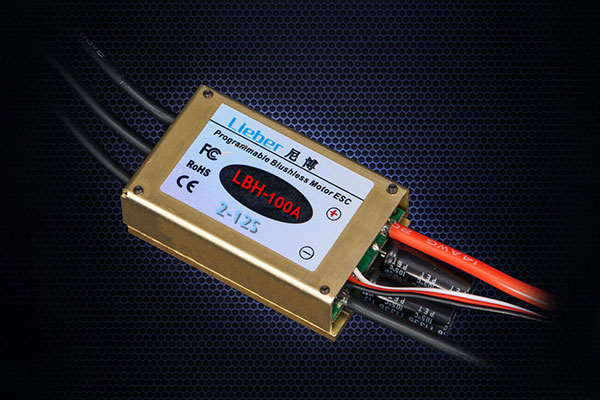

LBH-100A Brushless ESCLBH-100A

Features:

  1. The use of powerful, high-performance CPU. ESC has a more exquisite and accurate throttle precision, quick throttle response and better motor compatibility.
  2. Select the latest power tube, a lower internal resistance and a stronger current resistance ability.
  3. Microprocessor selects the independent voltage regulator IC to supply power, has a better anti-interference ability.
  4. More perfect brake and start mode, compatible with both fixed-wing airplane & Helicopter.
  5. Input Voltage Abnormal Protection / Low Voltage Cut-off Protection / Over-heat Protection.
  6. The throttle signal is transfered through optical / electrical coupled system to avoid electromagnetic interference.
  7. Input with a spark-eliminating circuit, effectively prevents elcctric spark while connecting to the power and prolongs the service life of the plug.

LBH-100A

Specifications:

  • Output: Continuous 100A, Burst 130A up to 10 seconds.
  • Input Voltage: 5-12S Lipo 15-36 cells NiMH
  • BEC Output: None
  • Refresh rate of the throttle signal: 50Hz – 621Hz
  • Control Signal Transmission: Optical / electrical coupled system.
  • Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM
  • Size: 52*34*18(L*W*H)
  • Weight: 105g
