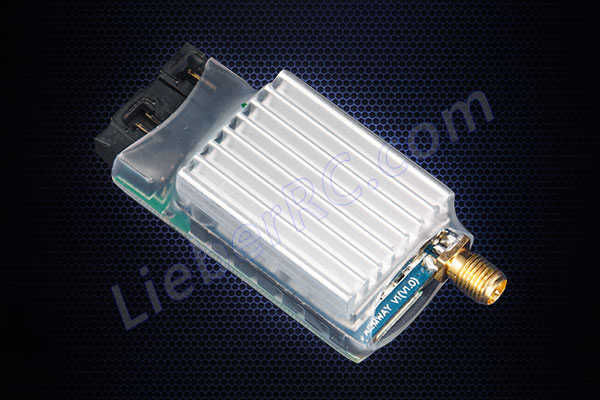

LB-TX400 5.8G 400mW TransmitterLB-TX400

The Characteristics of the Transmitter

  •  Working Frequency: 5725MHz-5945MHz
  • 5.8G FM Audio/Video Synchronization transmission.
  • A small size of 55*28*15mm, compact structure and emission powerfully- the use of large scale integrated circuits ensures the high reliability and sensitivity
  • Working Voltage: 7.4V-16V
  • 32 working channels, DIP switch selectable settings
  • Use of digital phase-locked loop circuit and there is no temperature drift phenomenon.
  • Transmitte Distance:>2000 meters.
  • Built-in Microphone and a compact size.
  • Image signal: NTSC / PAL, 1Vp-p (75 Ohm.)
  • Voice signal: dual channel 2Vp-p (2K Ohm.)
  • Antenna connector: SMA (outer screw hole)
  • Weight: 20g

Applications

  • Model Airplane/Wireless RC Plane, RC Boat and other toys.

LB-TX200
download: LB-5.8G-TX400 Manual
