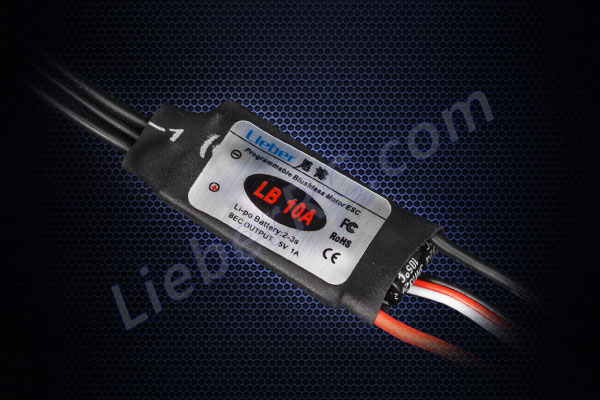

LB-10A Brushless ESCLB-10A

Features:

1. Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2. Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters

3. Programmable Items:

  • Brake Setting: Enabled / Disabled
  • Battery Type: Lipo / NiMH
  • Low Voltage Protection Mode: Soft Cut-off (Gradually reduce the output power) / Cut-off (Immediately stop the output power)
  • Low Voltage Protection Threshold: Low / Medium / High
  • Start Mode: Normal / Soft / Super Soft
  • Timing: Low / Medium / High
  • Restore Factory Default Setting

4. Full Protections:

  • Low Voltage Cut-off: Setting by program
  • Over-heat Protection: The output power will automatically reduce.

5. Select electrolytic capacitor with low resistance, strong anti-interference ability.

LB-10A

Specifications:

  1. Output: Continuous 10A, Burst 12A up to 10 seconds
  2. Input Voltage: 2-4S Lipo, 6-12 cells NiMH
  3. BEC Output: 1A / 5V (Linear Mode BEC)
  4. Refresh rate of the throttle signal: 50Hz – 400Hz
  5. Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM
  6. Size: 27*17*6(L*W*H)
  7. Weight: 8g
